The Great Seal Bug Incident: A Cold War Espionage Masterstroke

Background: A Gift with Hidden Intent

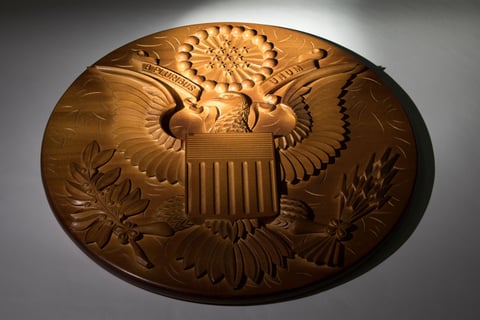

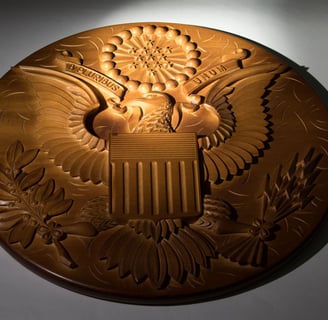

In 1945, near the end of World War II, a group of Soviet schoolchildren
presented a wooden replica of the Great Seal of the United States to the
U.S. Ambassador to the Soviet Union, W. Averell Harriman, as a gesture of
friendship. The gift was accepted and proudly displayed in the ambassador’s
private residential office at Spaso House, the U.S. embassy residence in
Moscow.

Unbeknownst to the Americans at the time, the seal was a Trojan horse - inside
it was a sophisticated listening device planted by Soviet intelligence. This
device would become one of the most legendary feats of Cold War-era
espionage and would not be discovered for seven years.

The Device: The "Thing"

The bug inside the seal was later nicknamed "The Thing", and it was created by Lev Sergeyevich Termen, a brilliant Soviet engineer and the inventor of the theremin. What made this bug particularly ingenious was that it contained no power source or active electronics - it was a passive resonant cavity microphone.

This passive design made the bug exceptionally difficult to detect using traditional sweeps, which relied on picking up active electronic emissions.

Discovery and Exposure

The bug was finally discovered in 1952 during a routine sweep conducted by a U.S. technical team after suspicions arose that embassy conversations were being compromised. The seal was X-rayed and taken apart, revealing the hidden cavity and its device.

The U.S. government, stunned by the sophistication of the technology, kept the discovery largely secret at first. However, in 1960, during a session at the United Nations, U.S. Ambassador Henry Cabot Lodge Jr. dramatically displayed the bugged seal before the international community. He used it to accuse the Soviet Union of gross violations of diplomatic norms and treaties.

Impact on the Cold War

The Great Seal bug incident had significant symbolic and strategic implications:

Heightened Suspicion: It validated U.S. fears that the Soviet Union was deeply engaged in technological and psychological warfare. This contributed to the growing climate of distrust that characterized the Cold War.
Technological Arms Race: The sophistication of "The Thing" pushed U.S. intelligence and counterintelligence agencies, including the CIA and NSA, to advance their surveillance detection techniques and invest in more sophisticated technology.
Diplomatic Security Measures: After the discovery, the U.S. drastically revised its security protocols for embassies, including how diplomatic gifts were handled and how embassy structures were constructed (leading eventually to the use of "secure rooms" and bug-proof materials).

Spying in Context: A Norm Among Nations

At the time, state-sponsored espionage was not just common - it was expected. During and after World War II:

The Allies and the Axis powers had engaged in widespread intelligence operations.
With the onset of the Cold War, the U.S. and USSR invested heavily in intelligence gathering through the CIA, KGB, MI6, and other agencies.
Embassies were hotbeds of both signal intelligence (SIGINT) and human intelligence (HUMINT) activities, with both sides routinely trying to penetrate diplomatic premises.

So while the Great Seal bug was shocking in its execution and sophistication, it was part of a broader game of geopolitical cat-and-mouse.

Where is the Bug Now?

Today, the Great Seal bug, or “The Thing,” is a historical artifact. A replica of the bug is on display at the National Security Agency’s National Cryptologic Museum in Fort Meade, Maryland. The device remains a classic example of Cold War ingenuity and a cautionary tale of the perils of diplomatic trust.

Conclusion

The Great Seal bug was not just a technical marvel - it was a symbolic blow to US-Soviet diplomatic relations. It underscored the depth of Cold War tensions and the lengths to which nations would go to gather intelligence. As a passive device decades ahead of its time, it helped shape modern approaches to counter-surveillance and remains an enduring symbol of espionage history.

How "The Thing" Worked: A Passive Resonant Cavity Microphone

"The Thing" was a groundbreaking covert listening device that operated without any internal power source. Its design utilized a passive resonant cavity microphone, which was activated remotely by an external radio frequency (RF) source.Wikipedia

Components and Operation

Antenna: A 9-inch (23 cm) straight rod antenna extended from the device, designed to resonate at specific frequencies, typically around 330 MHz.
Resonant Cavity: A silver-plated copper cylinder formed the main body of the device. Inside this cavity, a thin conductive diaphragm acted as one plate of a capacitor. A mushroom-shaped tuning post was positioned close to the diaphragm, forming the other plate.
Activation: When an external RF signal was directed at the device, the antenna captured this energy, energizing the resonant cavity. Sound waves (e.g., conversations) in the room caused the diaphragm to vibrate, modulating the reflected RF signal. This modulated signal could then be intercepted and demodulated by the Soviets to eavesdrop on conversations.

The device's passive nature made it extremely difficult to detect, as it emitted no signals unless actively illuminated by an external RF source.

Diagram of "The Thing"

Below is a diagram illustrating the internal structure and operation of "The Thing":
